8 Layer Via In Pad Treatment PCB Black Solder Mask

Main Features:

1 8 Layer Printed Circuit Board with very high relability.

2 PCB drawing size is 142mm*96mm/1pcs

3 Copper thickness is 35 um on each layer

4 FR4 substrate material ,halogen free material.

5 Surface treatment is immersion gold.

6 Gold thickness is 1U'.

7 Finished board thickness is 1.6mm.

8 Gerber file or PCB file should be offered by customer before production.

Our Equipment List:

FAQ:

Q1:What is Via plugging? When is it used? How is it different from Via Tenting?

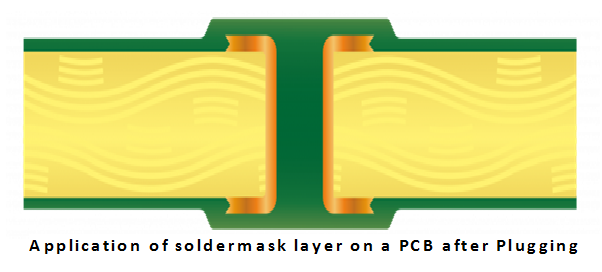

A1: Via plugging is a process in which vias are completely filled with resin or closed with a solder mask. This technique is different from via tenting where resin/solder mask doesn’t fill the via hole but just provides a covering.

Via plugging is done as a preventive measure to secure the vias from the unwanted flow of solder material during the assembly/soldering process. During the soldering process, if a via is not plugged or tented, the solder can flow down the via from the pads and can create unnecessary solder joints.

Via plugging can be done using conductive or non-conductive materials. The conductively filled vias help to carry a large amount of current from one side of the PCB board to another. However, the main drawback of conductively filled vias is the difference in CTE (Coefficient of Thermal Expansion) between the conductive fill and surrounding laminate. During PCB operation, the conductive material will heat and expand at a faster rate than the surrounding laminate, which can cause a fracture between the via wall and associated contact pad.

The via holes filled with non-conductive materials will still function like normal vias. However, they will not be able to carry higher current loads like those filled with conductive materials.

Witgain Technology Limited was established in 2007. Factories locate in HuiZhou City and marketing locates in ShenZhen City. The total area of two factories is around 10000 square meters. We can offer 2-layer and multi-layer pcb services to our customers, highest to 24 layers and rigid-flex pcb, ceramic pcb, HDI pcb, heavy copper pcb are also included. To meet our customer's diversified demands, we also accept prototype orders, small batch orders and big batch orders. Quality and technology is what we value most and we will never stop improving our capabilities. Our customers' satisfaction is always what we are seeking for.
