| Brand Name : | WITGAIN PCB |
| Model Number : | Multi-Layer PCB0026 |
| Certification : | UL |
| Price : | negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100k pcs/month |
| Delivery Time : | 20 days |

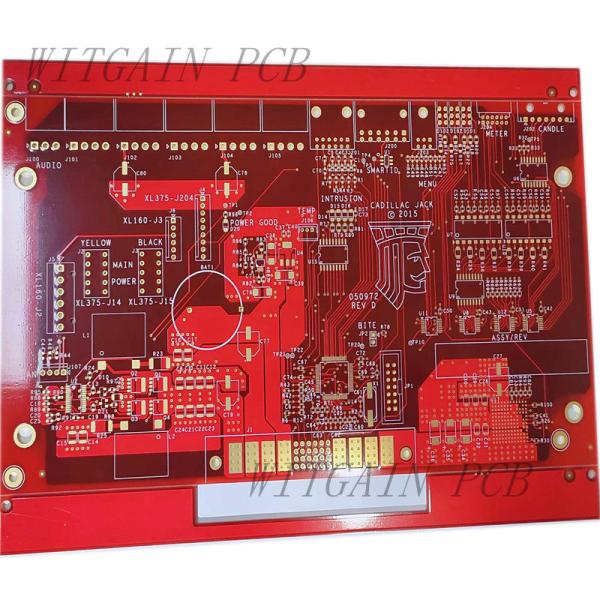

Multi Layer Circuit Board 8 Layer Printed Circuit Board Red Solder Mask
PCB Specifications:
1 Part NO: Multi-Layer PCB0026
2 Layer Count: 8 Layer PCB
3 Finished Board Thickness: 2.0MM
4 Copper Thickness: 1/1/1/1/1/1 OZ
5 Min Lind Space&Width: 4/4 mil
6 Application Area: Industrial Control
Material Data Sheet:
| S1130 | |||||
| Items | Method | Condition | Unit | Typical Value | |
| Tg | IPC-TM-650 2.4.25 | DSC | ℃ | 135 | |
| Td | IPC-TM-650 2.4.24.6 | 5% wt. loss | ℃ | 310 | |
| CTE (Z-axis) | IPC-TM-650 2.4.24 | Before Tg | ppm/℃ | 65 | |
| After Tg | ppm/℃ | 310 | |||
| 50-260℃ | % | 4.5 | |||
| T260 | IPC-TM-650 2.4.24.1 | TMA | min | 13 | |
| T288 | IPC-TM-650 2.4.24.1 | TMA | min | <1 | |
| Thermal Stress | IPC-TM-650 2.4.13.1 | 288℃, solder dip | -- | 60S No Delamination | |
| Volume Resistivity | IPC-TM-650 2.5.17.1 | After moisture resistance | MΩ.cm | 4.8E + 08 | |
| E-24/125 | MΩ.cm | 4.6E + 06 | |||
| Surface Resistivity | IPC-TM-650 2.5.17.1 | After moisture resistance | MΩ | 5.2E + 07 | |
| E-24/125 | MΩ | 5.3E + 06 | |||
| Arc Resistance | IPC-TM-650 2.5.1 | D-48/50+D-4/23 | s | 120 | |
| Dielectric Breakdown | IPC-TM-650 2.5.6 | D-48/50+D-4/23 | kV | 60 | |
| Electrical Strength | IPC-TM-650 2.5.6.2 | D-48/50+D-4/23 | kV/mm | — | |
| Dissipation Constant (Dk) | IPC-TM-650 2.5.5.9 | 1MHz | -- | 4.6 | |
| IEC 61189-2-721 | 10GHz | -- | — | ||
| Dissipation Factor (Df) | IPC-TM-650 2.5.5.9 | 1MHz | -- | 0.016 | |
| IEC 61189-2-721 | 10GHz | -- | — | ||
| Peel Strength(1oz HTE copper foil) | IPC-TM-650 2.4.8 | A | N/mm | — | |
| After thermal Stress 288℃,10s | N/mm | 1.8 | |||
| 125℃ | N/mm | 1.6 | |||
| Flexural Strength | LW | IPC-TM-650 2.4.4 | A | MPa | 600 |
| CW | IPC-TM-650 2.4.4 | A | MPa | 500 | |
| Water Absorption | IPC-TM-650 2.6.2.1 | E-1/105+D-24/23 | % | 0.15 | |
| CTI | IEC30112 | C-48/23/50, | ℃ | PLC 3 | |
| Flammability | UL94 | C-48/23/50 | Rating | V-0 | |
| E-24/125 | Rating | V-0 | |||
Our Product Categories:
| Our Product Categories | ||
| Material Kinds | Layer Counts | Treatments |
| FR4 | Single Layer | HASL Lead Free |
| CEM-1 | 2 Layer/Double Layer | OSP |
| CEM-3 | 4 Layer | Immersion Gold/ENIG |
| Aluminum Substrate | 6 Layer | Hard Gold Plating |
| Iron Substrate | 8 Layer | Immersion Silver |
| PTFE | 10 Layer | Immersion Tin |
| PI Polymide | 12 Layer | Gold fingers |
| AL2O3 Ceramic Substrate | 14 Layer | Heavy copper up to 8OZ |
| Rogers, Isola high frequency materials | 16 Layer | Half plating holes |
| Halogen free | 18 Layer | HDI Laser drilling |
| Copper based | 20 Layer | Selective immersion gold |
| 22 Layer | immersion gold +OSP | |
| 24 Layer | Resin filled in vias | |
|
|
