Hard Gold Plating Printed Circuit Board Super Thick Gold Thickness 120u'

• Main Features:

1 Super heavy gold on pad, gold thickness is 120u'.

2 Resin filled in vias, all vias plated shut.

3 Top side surface treatment is hard gold plating.

4 Bottom side surface treatment is immersion gold.

5 Black solder mask and white silkscreen.

6 Finished board thickness is 1.0mm.

7 Board size is 183mm*114mm/98pcs.

8 ROHS, MSDS, SGS, UL, ISO9001&ISO14001 Certificated.

9 Customized pcb, need customer to send gerber file or PCB file to us.

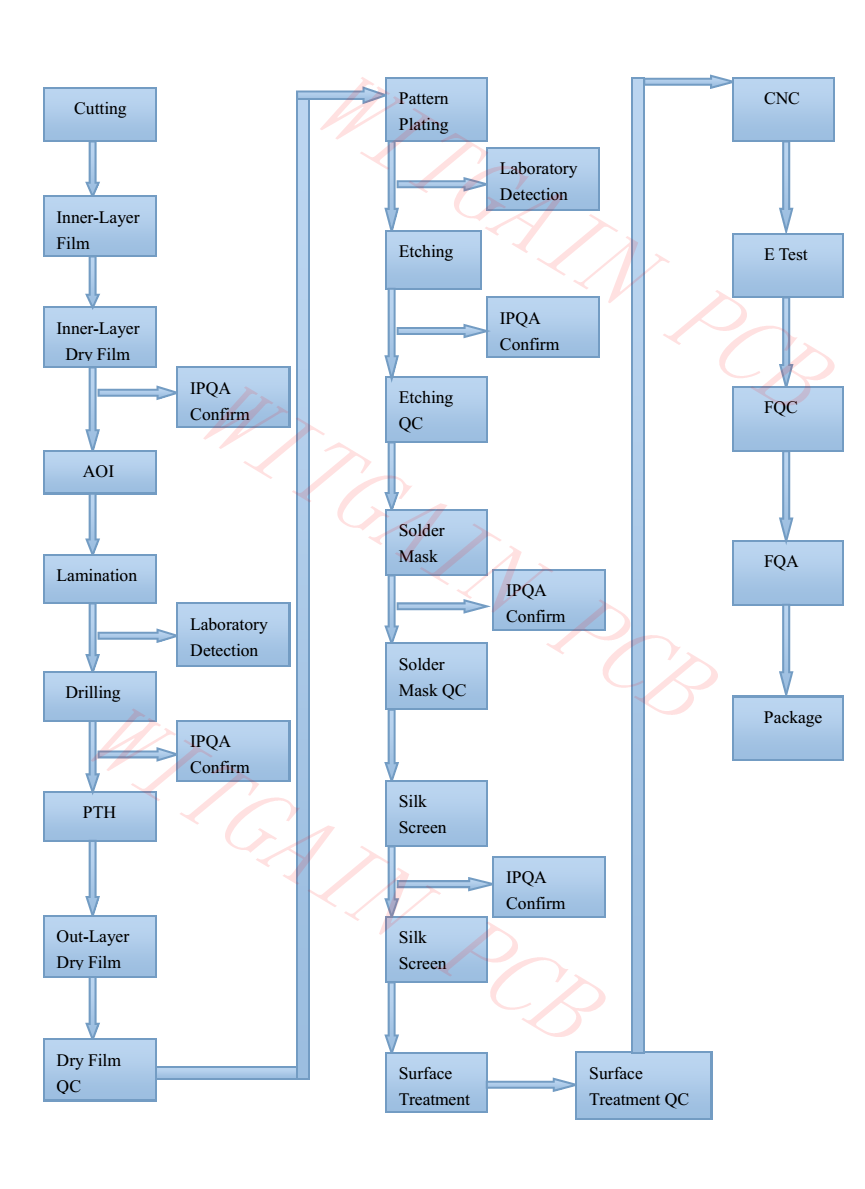

• PCB Production Process:

• FAQ:

Q1: What is the trade term?

A1: EX WORK, FCA SHENZHEN, FOB SHENZHEN, FOB HONGKONG

Q2: What is the lead time of your pcb

A2: It depends on pcb qty and pcb layers. Generally, for 2 layer pcb the sample lead time is about 4-5 days, batch order lead time is 10-12 days. For 4 layer pcb, sample lead time is 7-8 days, batch order lead time is 15-18 days. If customer need pcb very urgently, we will expedite the process and ship it earlier than standard lead time.

Witgain Technology Limited was established in 2007. Factories locate in HuiZhou City and marketing locates in ShenZhen City. The total area of two factories is around 10000 square meters. We can offer 2-layer and multi-layer pcb services to our customers, highest to 24 layers and rigid-flex pcb, ceramic pcb, HDI pcb, heavy copper pcb are also included. To meet our customer's diversified demands, we also accept prototype orders, small batch orders and big batch orders. Quality and technology is what we value most and we will never stop improving our capabilities. Our customers' satisfaction is always what we are seeking for.
